60N03GP - AP60N03GP

60N03GP Description

AP60N03GS/P Pb Free Plating Product Advanced Power Electronics Corp.▼ Low On-Resistance ▼ Fast Switching www.DataSheet4U.com N-CHANNEL ENHANCEMENT .
The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and.

60N03GP Applications

* and suited for low voltage applications such as DC/DC converters. The through-hole version (AP60N03GP) is available for low-profile applications. GD S TO-263(S) G D TO-220(P) Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-So

📥 Download Datasheet

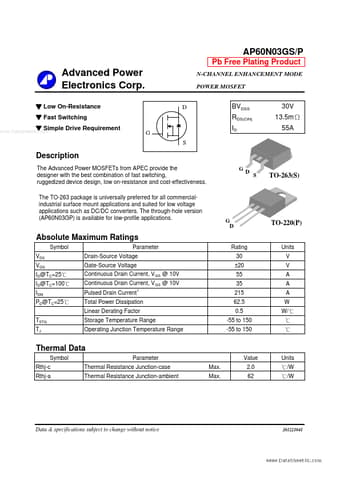

Preview of 60N03GP PDF
datasheet Preview Page 2 datasheet Preview Page 3
