AP20T15GH-HF, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP20T15GH-HF Halogen-Free Product Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ Lower On-resistance ▼ Fast Switching Characteristic ▼.
AP20T15 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching.

AP20T15GH-HF_AdvancedPowerElectronics.pdf

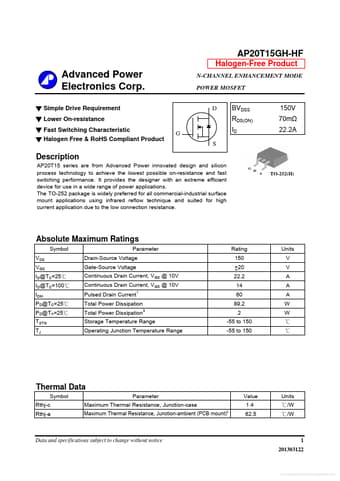

AP20T15GH-HF Datasheet Preview — Preview of AP20T15GH-HF PDF

Datasheet Details

Part number:

AP20T15GH-HF

Manufacturer:

Advanced Power Electronics

File Size:

116.76 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. G D S TO-252(H) Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃
