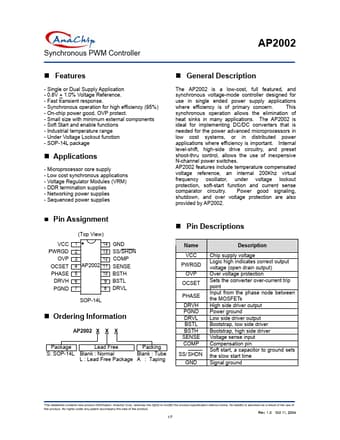

AP2002 Datasheet, controller equivalent, Anachip

AP2002 Features

• Controller - Single or Dual Supply Application - 0.8V + 1.0% Voltage Reference. - Fast transient response. - Synchronous operation for high efficiency (95%) - On-chip power good, OVP protect. - Sm

PDF File Details

Part number:

AP2002

Manufacturer:

Anachip

File Size:

177.18kb

Download:

📄 Datasheet

Description:

Synchronous pwm controller. The AP2002 is a low-cost, full featured, and synchronous voltage-mode controller designed for use in single ended power supply applic

AP2002 Application

• Applications - Microprocessor core supply - Low cost synchronous applications - Voltage Regulator Modules (VRM) - DDR termination supplies - Network
