AP2007 - Rectifier Step Up Converter

Product Overview

Chipown

Datasheet Details

Part number	AP2007
Manufacturer	Chipown
File Size	535.85 KB
Description	Rectifier Step Up Converter
Datasheet	AP2007 Datasheet

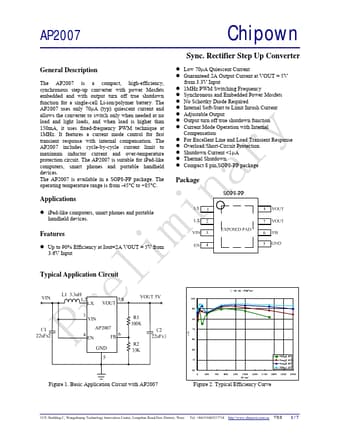

Additional preview pages of the AP2007 datasheet.

Product details

Description

The AP2007 is a compact, high-efficiency, synchronous step-up converter with power Mosfets embedded and with output turn off true shutdown function for a single-cell Li-ion/polymer battery.

Features

a current mode control for fast transient response with internal compensation. The AP2007 includes cycle-by-cycle current limit to maximum inductor current and over-temperature protection circuit. The AP2007 is suitable for iPad-like computers, smart phones and portable handheld devices. The AP2007 is available in a SOP8-PP package. The operating temperature range is from -45°C to +85°C.
