AP2008 - PWM BUCK CONTROLLER

Product Overview

Diodes Incorporated

📥 Download Datasheet

AP2008 PWM BUCK CONTROLLER by Diodes Incorporated - Datasheet Preview — Datasheet preview – AP2008

Datasheet Details

Part number	AP2008
Manufacturer	DIODES Incorporated
File Size	113.36 KB
Description	PWM BUCK CONTROLLER
Datasheet	AP2008 Datasheet

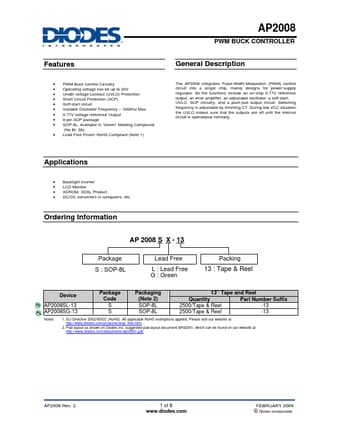

Additional preview pages of the AP2008 datasheet.

Product details

Description

The AP2008 integrates Pulse-Width-Modulation (PWM) control circuit into a single chip, mainly designs for power-supply regulator.

Features

PWM Buck Control Circuitry.
Operating voltage can be up to 20V.
Under voltage Lockout (UVLO) Protection.
Short Circuit Protection (SCP).
Soft-start circuit.
Variable Oscillator Frequency -- 300Khz Max.
0.77V voltage reference Output.
8-pin SOP package.
SOP-8L: Available in “Green” Molding Compound (No Br, Sb).
Lead Free Finish/ RoHS Compliant (Note 1) AP2008 PWM BUCK.
