AP200N03NF

30V N-Channel Enhancement Mode MOSFET

AP200N03NF Features

* VDS = 30V ID =200A RDS(ON) < 1.0mΩ @ VGS=10V（Type：0.8mΩ） Application Buck Boost Package Marking and Ordering Information Product ID Pack Marking AP200N03NF PDFN5

* 6-8L AP200N03NF XXX YYYY Absolute Maximum Ratings (TC=25℃unless otherwise noted) Symbol Parameter Max. VDSS VGSS ID@TC=2

AP200N03NF General Description

AP200N03NF 30V N-Channel Enhancement Mode MOSFET The AP200N03NF uses advanced APM-SGT V technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Feat.

AP200N03NF Datasheet (761.02 KB)

Rating: 1 ★ (5 votes)

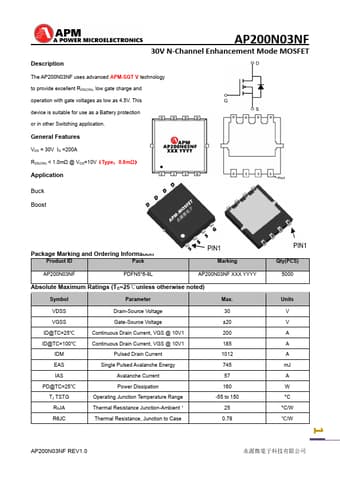

Preview of AP200N03NF PDF

Datasheet Details

Part number:

AP200N03NF

Manufacturer:

APM

File Size:

761.02 KB

Description:

30v n-channel enhancement mode mosfet.
