AP2201 Datasheet, regulator equivalent, Chipown

AP2201 Features

  • Regulator z Low voltage operation: Startup at 0.9 V min (Iout 1 mA) guaranteed z Low input current: 2.3uA (Vout 3.3 V) z Duty ratio: 75 % Built-in fixed-type PFM controller z External parts: C

PDF File Details

Part number:

AP2201

Manufacturer:

Chipown

File Size:

251.03kb

Download:

📄 Datasheet

Description:

Pfm control step-up switching regulator. The AP2201 Series is a CMOS PFM-control step-up switching regulator that mainly consists of a reference voltage source, an oscillator

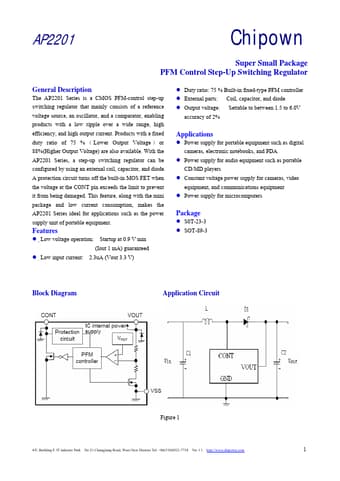

Datasheet Preview: AP2201 📥 Download PDF (251.03kb)
Page 2 of AP2201 Page 3 of AP2201

AP2201 Application

  • Applications such as the power supply unit of portable equipment. Features z Low voltage operation: Startup at 0.9 V min (Iout 1 mA) guaranteed z 
