AP220309 - 4A LOAD SWITCH

Product Overview

DIODES

📥 Download Datasheet

AP220309 4A LOAD SWITCH by DIODES - Datasheet Preview — Datasheet preview – AP220309

Datasheet Details

Part number	AP220309
Manufacturer	DIODES
File Size	536.59 KB
Description	4A LOAD SWITCH
Datasheet	AP220309 Datasheet

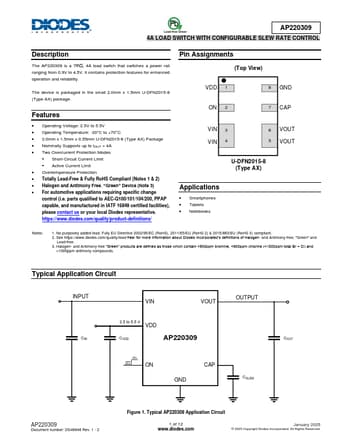

Additional preview pages of the AP220309 datasheet.

Product details

Description

The AP220309 is a 7mΩ, 4A load switch that switches a power rail ranging from 0.9V to 4.5V.

Features

for enhanced operation and reliability. The device is packaged in the small 2.0mm x 1.5mm U-DFN2015-8 (Type AX) package. Features.
Operating Voltage: 2.5V to 5.5V.
Operating Temperature: -20°C to +70°C.
2.0mm x 1.5mm x 0.55mm U-DFN2015-8 (Type AX) Package.
Nominally Supports up to IOUT = 4A.
Two Overcurrent Protection Modes.
Short-Circuit Current Limit.
Active Current Limit.
Overtemperature Protection.
Totally Lead-Free & F.
