AP221614 - 4A LOAD SWITCH

Product Overview

DIODES

📥 Download Datasheet

AP221614 4A LOAD SWITCH by DIODES - Datasheet Preview — Datasheet preview – AP221614

Datasheet Details

Part number	AP221614
Manufacturer	DIODES
File Size	535.48 KB
Description	4A LOAD SWITCH
Datasheet	AP221614 Datasheet

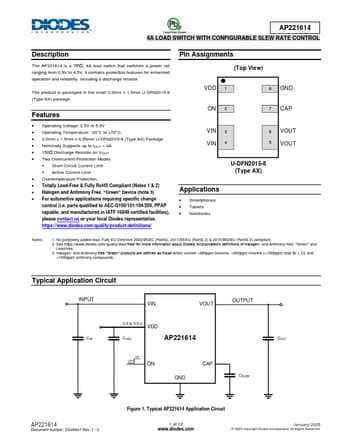

Additional preview pages of the AP221614 datasheet.

Product details

Description

The AP221614 is a 7mΩ, 4A load switch that switches a power rail ranging from 0.9V to 4.5V.

Features

for enhanced operation and reliability, including a discharge resistor. The product is packaged in the small 2.0mm x 1.5mm U-DFN2015-8 (Type AX) package. Features.
Operating Voltage: 2.5V to 5.5V.
Operating Temperature: -20°C to +70°C.
2.0mm x 1.5mm x 0.55mm U-DFN2015-8 (Type AX) Package.
Nominally Supports up to IOUT = 4A.
150Ω Discharge Resistor on VOUT.
Two Overcurrent Protection Modes.
Short-Circuit Current Limit.
Active Current.
