AP2213 - LOW NOISE LDO REGULATOR

Product Overview

BCD Semiconductor

Datasheet Details

Part number	AP2213
Manufacturer	BCD Semiconductor
File Size	321.40 KB
Description	LOW NOISE LDO REGULATOR
Datasheet	AP2213 Datasheet

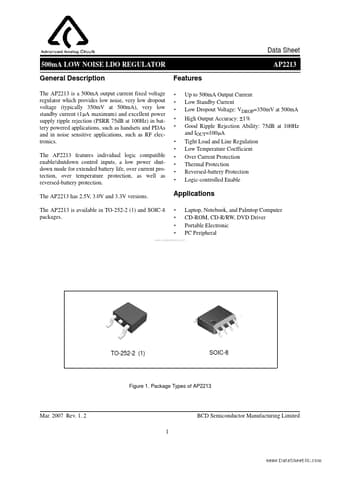

Additional preview pages of the AP2213 datasheet.

Product details

Description

The AP2213 is a 500mA output current fixed voltage regulator which provides low noise, very low dropout voltage (typically 350mV at 500mA), very low standby current (1µA maximum) and excellent power supply ripple rejection (PSRR 75dB at 100Hz) in battery powered applications, such as handsets and PDAs and in noise sensitive applications, such as RF electronics.

Features

individual logic compatible enable/shutdown control inputs, a low power shutdown mode for extended battery life, over current protection, over temperature protection, as well as reversed-battery protection. The AP2213 has 2.5V, 3.0V and 3.3V versions. The AP2213 is available in TO-252-2 (1) and SOIC-8 packages. AP2213 Features.
Up to 500mA Output Current Low Standby Current Low Dropout Voltage: VDROP=350mV at 500mA High Output Acc.
