AP22652A, AP22652 - PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES

AP22652A Description

AP22652/AP22653/AP22652A/AP22653A PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES .
The AP22652, AP22653, AP22652A, and AP22653A are singlechannel, precision-adjustable, current-limited switches optimized for applications that require.

AP22652A Features

* Up to 2.1A Maximum Load Current
* Accurate Adjustable Current Limit, 125mA to 2665mA
* ±7% Accurate Adjustable Current Limit, 1.735A with RLIM = 15kΩ
* Constant-Current (AP22652/53) During Overcurrent
* Output Latch-Off (AP22652A/53A) at Overcurrent

AP22652A Applications

* that require precision current limiting, or to provide up to 2.1A of continuous load current during heavy loads/short circuits. These devices offer a programmable current-limit threshold between 125mA and 2665mA (typ) via an external resistor. Current-limit accuracy ±10% can be achieved at high curr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AP22652A, AP22652. Please refer to the document for exact specifications by model.

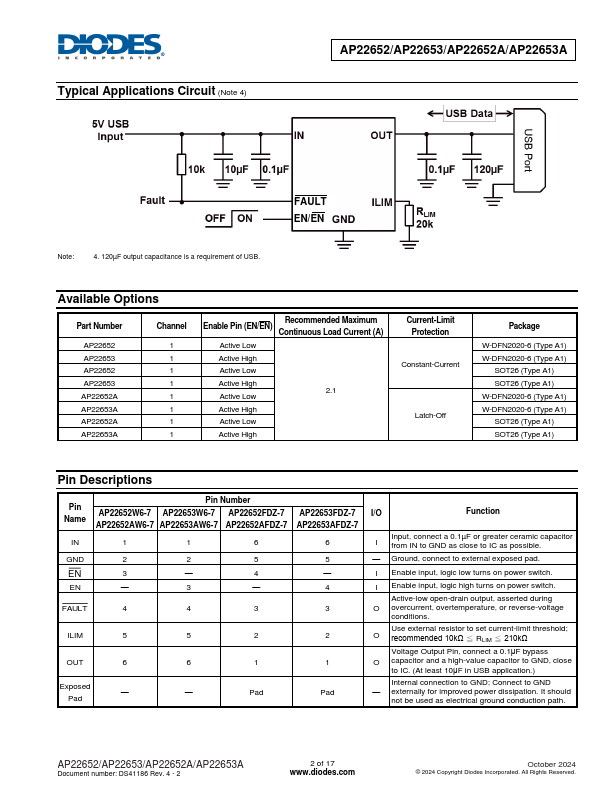

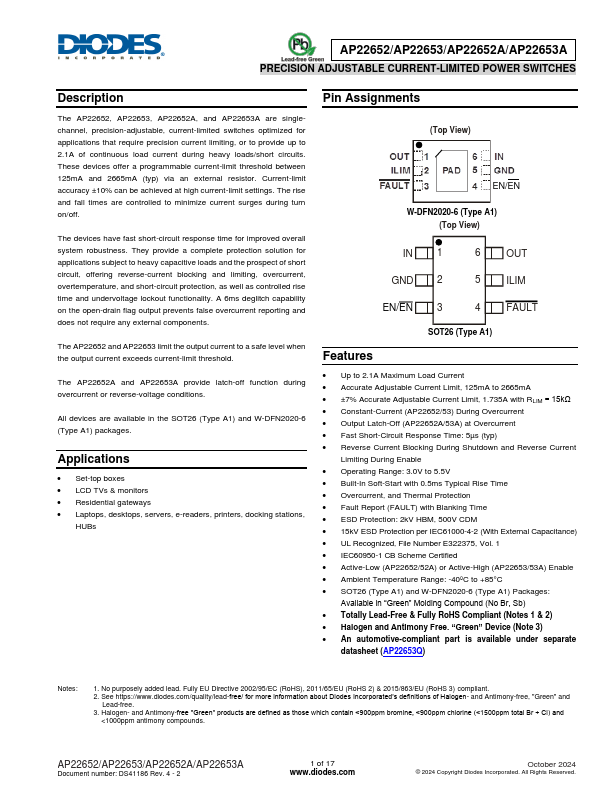

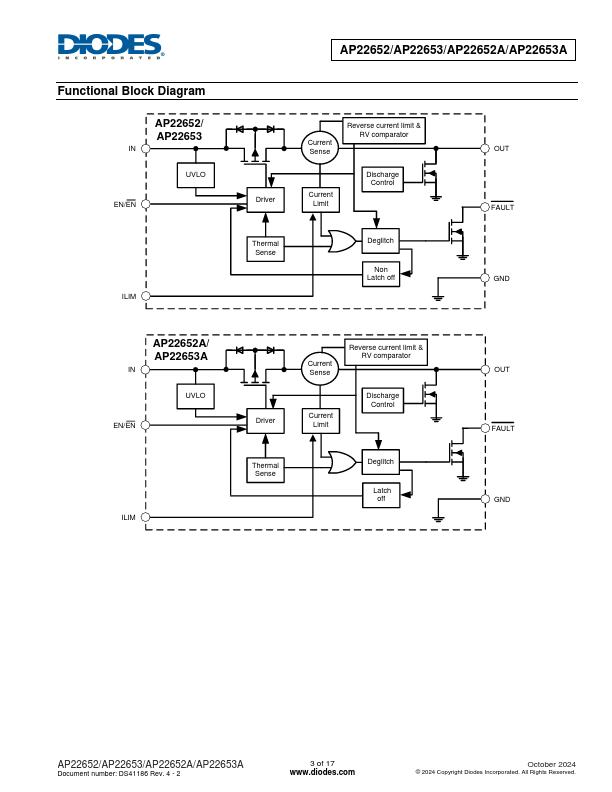

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP22652A, AP22652
Manufacturer
DIODES ↗
File Size
1.04 MB
Datasheet
AP22652-Diodes.pdf
Description
PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES
Note
This datasheet PDF includes multiple part numbers: AP22652A, AP22652.
Please refer to the document for exact specifications by model.
