AP22653

PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES

AP22653 Features

* Up to 2.1A Maximum Load Current

* Accurate Adjustable Current Limit, 125mA to 2665mA

* ±7% Accurate Adjustable Current Limit, 1.735A with RLIM = 15kΩ

* Constant-Current (AP22652/53) During Overcurrent

* Output Latch-Off (AP22652A/53A) at Overcurrent

AP22653 General Description

The AP22652, AP22653, AP22652A, and AP22653A are singlechannel, precision-adjustable, current-limited switches optimized for applications that require precision current limiting, or to provide up to 2.1A of continuous load current during heavy loads/short circuits. These devices offer a programmable.

AP22653 Datasheet (811.23 KB)

Rating: 1 ★ (3 votes)

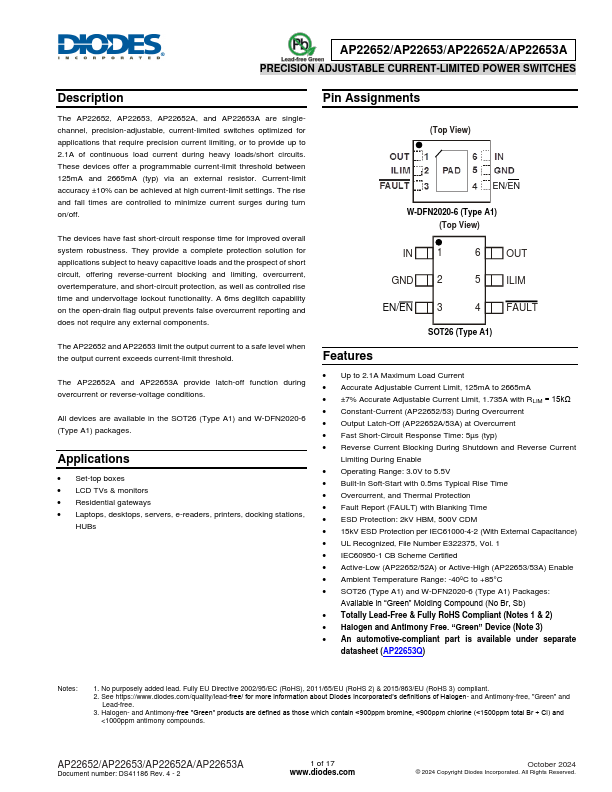

Preview of AP22653 PDF

Datasheet Details

Part number:

AP22653

Manufacturer:

DIODES ↗

File Size:

811.23 KB

Description:

Precision adjustable current-limited power switches.

📁 Related Datasheet

AP22652 PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES (Diodes)

AP22652A PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES (Diodes)

AP22653A PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES (Diodes)

AP22615 SINGLE CHANNEL POWER DISTRIBUTION SWITCH (Diodes)

AP2201 RF ULDO REGULATOR (BCD Semiconductor)

AP2201 PFM Control Step-Up Switching Regulator (Chipown)

AP2202 RF ULDO REGULATOR (BCD Semiconductor)

AP2202 150mA RF ULDO REGULATOR (Diodes)

AP2203 RF ULDO REGULATOR (BCD Semiconductor)

AP220309 4A LOAD SWITCH (DIODES)

TAGS

AP22653 PRECISION ADJUSTABLE CURRENT-LIMITED POWER SWITCHES Diodes

Image Gallery

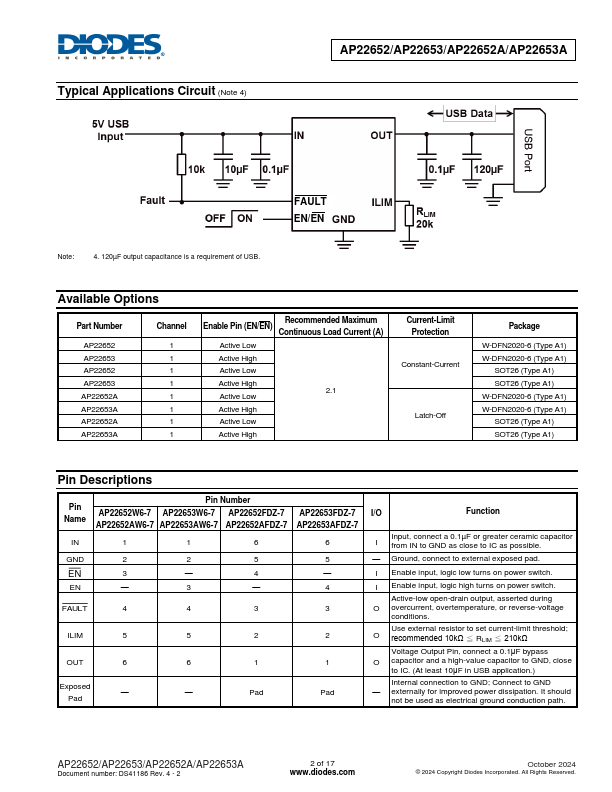

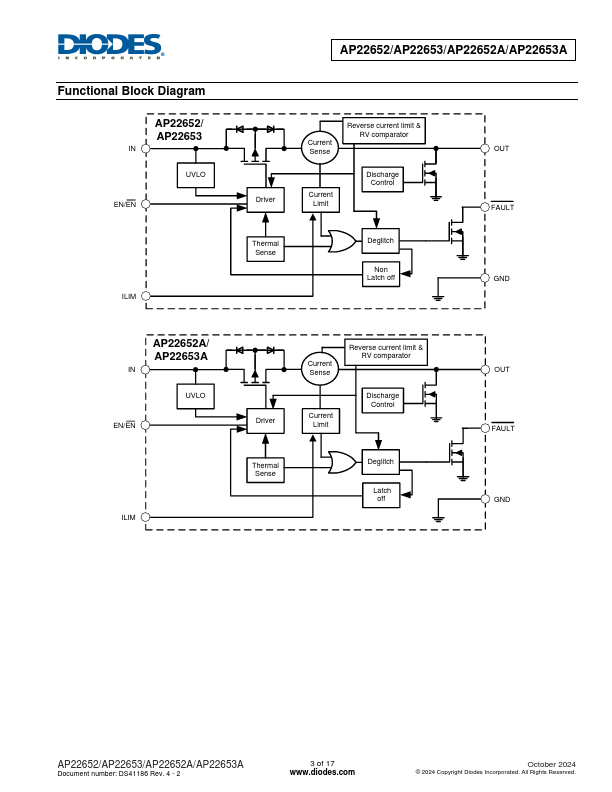

AP22653 Datasheet Preview Page 2 AP22653 Datasheet Preview Page 3
