AP2008 Datasheet - Chipown

2A Step Up Regulator

AP2008 Features

* z High Efficiency: Up to 92% z 1.0MHz Constant Switching Frequency z Switch current up to 2A z Low Rdson: 0.2Ω z Accurate Reference:0.6V z Tiny External Components z Space Saving 6-Pin SOT23 Package Package SOT23-6L Applications z WLED Drivers z Networking cards powered from PCI or PCI- express s

AP2008 General Description

AP2008 is an asynchronous PWM boost converter using a constant frequency peak current mode. An external Schottky diode is needed. At light load, AP2008 works in the light load mode. The supply current during the light mode is 100uA , together with the 200mΩ internal NMOS power transistor guarantees .

AP2008 Datasheet (199.65 KB)

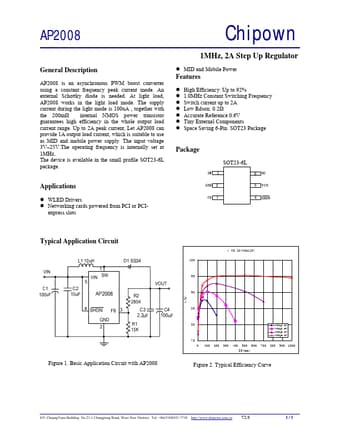

AP2008 Datasheet Preview — Preview of AP2008 PDF

Datasheet Details

Part number:

AP2008

Manufacturer:

Chipown

File Size:

199.65 KB

Description:

2a step up regulator.
