AP6985GN2-HF, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Advanced Power Electronics Corp.AP6985GN2-HF Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 1.8V Gate Drive ▼ Small Size.
AP6985 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching p.

AP6985GN2-HF-AdvancedPowerElectronics.pdf

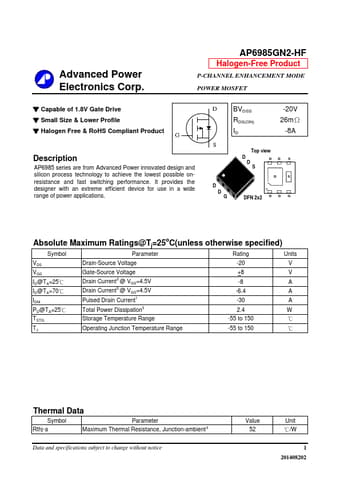

AP6985GN2-HF Datasheet Preview — Preview of AP6985GN2-HF PDF

Datasheet Details

Part number:

AP6985GN2-HF

Manufacturer:

Advanced Power Electronics

File Size:

64.64 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* D BVDSS RDS(ON) ID -20V 26mΩ -8A S D D G Top view D D S D D D S S DFN 2x2 D D G Absolute Maximum Ratings@Tj=25o. C(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Voltage Drain Current3 @ VG
