APT150GN120J Datasheet - Advanced Power Technology

APT150GN120J IGBT

TYPICAL PERFORMANCE CURVES ® APT150GN120J 1200V APT150GN120J E G C E Utilizing the latest Field Stop and Trench Gate technologies, these IGBT's have ultra low VCE(ON) and are ideal for low frequency applications that require absolute minimum conduction loss. Easy paralleling is a result of very tight parameter distribution and a slightly positive VCE(ON) temperature coefficient. A built-in gate resistor ensures extremely reliable operation, even in the event of a short circuit fault. Low gate .

APT150GN120J_AdvancedPowerTechnology.pdf

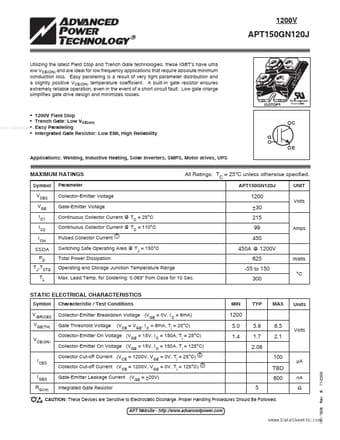

Preview of APT150GN120J PDF
APT150GN120J Datasheet Preview Page 2 APT150GN120J Datasheet Preview Page 3

Datasheet Details

Part number:

APT150GN120J

Manufacturer:

Advanced Power Technology

File Size:

453.75 KB

Description:

Igbt.
