APTGT450A60 - IGBT Power Module

Product Overview

Advanced Power Technology

📥 Download Datasheet

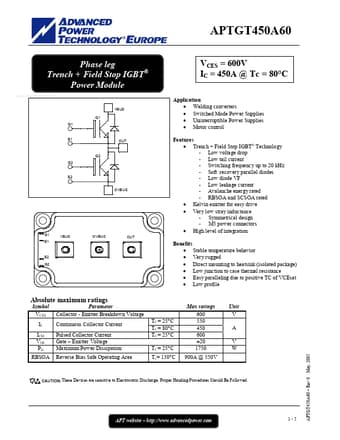

APTGT450A60 IGBT Power Module by Advanced Power Technology - Datasheet Preview — Datasheet preview – APTGT450A60

Datasheet Details

Part number	APTGT450A60
Manufacturer	Advanced Power Technology
File Size	286.78 KB
Description	IGBT Power Module
Datasheet	APTGT450A60 Datasheet
Additional preview pages of the APTGT450A60 datasheet.

Product details

Features

Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated.
Kelvin emitter for easy drive.
Very low stray inductance - Symmetrical design - M5 power connectors.
High level of integration Benefits.
Stable temperature behavior.
Very rugged.
Direct mounting to heatsink.
