APTGT400U120D4 - IGBT Power Module

Product Overview

Advanced Power Technology

📥 Download Datasheet

APTGT400U120D4 IGBT Power Module by Advanced Power Technology - Datasheet Preview — Datasheet preview – APTGT400U120D4

Datasheet Details

Part number	APTGT400U120D4
Manufacturer	Advanced Power Technology
File Size	210.83 KB
Description	IGBT Power Module
Datasheet	APTGT400U120D4 Datasheet

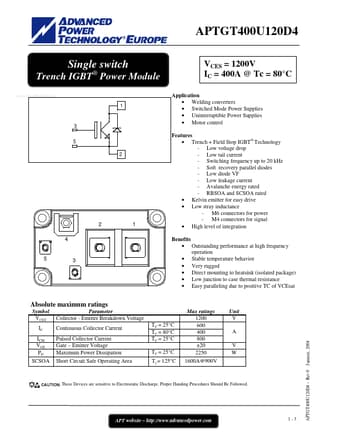

Additional preview pages of the APTGT400U120D4 datasheet.

Product details

Features

Trench + Field Stop IGBT® Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - Avalanche energy rated - RBSOA and SCSOA rated.
Kelvin emitter for easy drive.
Low stray inductance - M6 connectors for power - M4 connectors for signal.
High level of integration Benefits.
Outstanding performance at high frequency operation.
Stable temperature be.
