APTGT400U120D4G

IGBT Power Module

Microsemi Corporation

APTGT400U120D4G Features

* Trench + Field Stop IGBT Technology - Low voltage drop - Low tail current - Switching frequency up to 20 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - RBSOA and SCSOA rated

* Kelvin emitter for easy drive M6 connectors for

APTGT400U120D4G Datasheet (217.67 KB)

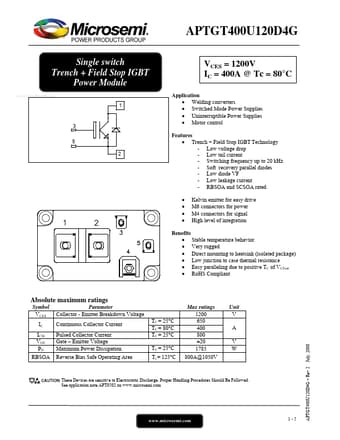

APTGT400U120D4G Datasheet Preview — Preview of APTGT400U120D4G PDF

Datasheet Details

Part number:

APTGT400U120D4G

Manufacturer:

Microsemi ↗ Corporation

File Size:

217.67 KB

Description:

Igbt power module.
APTGT400U120D4G Single switch Trench + Field Stop IGBT Power Module www.DataSheet4U.net VCES = 1200V IC = 400A @ Tc = 80°C Application

* Weld.
