ACL4300T2

Internally Matched LNA Module

ACL4300T2 Features

* S21 = 20.9 dB @ 4200 MHz = 19.1 dB @ 4400 MHz

* NF of 1.25 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 4300 MHz, Zo.sys = 50 ohm Parameter Frequency Range Gain Gain F

ACL4300T2 General Description

The plerowTM ACL-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ACL4300T2 Datasheet (550.06 KB)

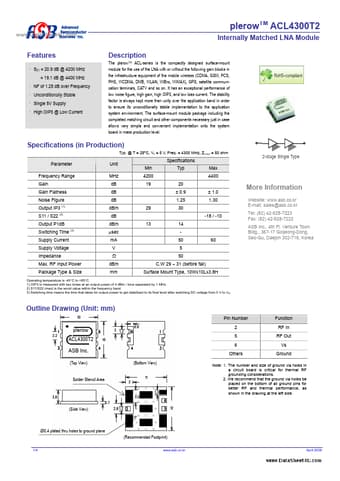

Preview of ACL4300T2 PDF

Datasheet Details

Part number:

ACL4300T2

Manufacturer:

Advanced Semiconductor Business

File Size:

550.06 KB

Description:

Internally matched lna module.
