ACL4400T2 - Internally Matched LNA Module

The plerowTM ACL-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ACL4400T2 Features

* S21 = 20.8 dB @ 4300 MHz = 19.2 dB @ 4500 MHz

* NF of 1.5 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 4400 MHz, Zo.sys = 50 ohm 2-stage Single Type Parameter Frequen

ACL4400T2_AdvancedSemiconductorBusiness.pdf

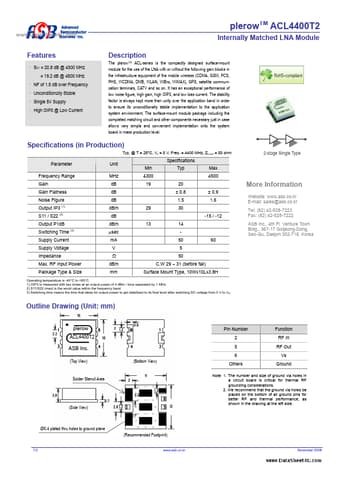

Preview of ACL4400T2 PDF
