5082-3170 Datasheet, Switch, Advanced Semiconductor

5082-3170 Features

  • Switch INCLUDE:
  • Direct Replacement for HP 5082-3170
  • Isolation = 20 dB min. at 10 GHz
  • Hermetic Package MAXIMUM RATINGS IF VR PDISS TJ TSTG θJC 250 mA 150 V 1.75 W

PDF File Details

Part number:

5082-3170

Manufacturer:

Advanced Semiconductor

File Size:

17.09kb

Download:

📄 Datasheet

Description:

Microstrip/stripline pin diode switch. The ASI 5082-3170 is a Silicon PIN Diode Module Designed for Reflective Attenuator and Switching Applications from 1 to 18 GHz. PAC

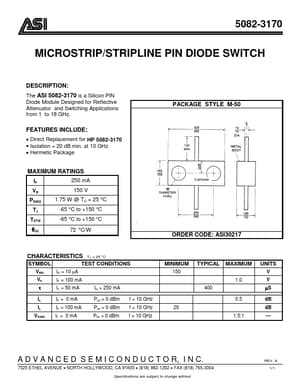

Datasheet Preview: 5082-3170 📥 Download PDF (17.09kb)

5082-3170 Application

  • Applications from 1 to 18 GHz. PACKAGE STYLE M-50 FEATURES INCLUDE:
  • Direct Replacement for HP 5082-3170
  • Isolation = 20 dB min.
