MV1807J1 - SILICON VARACTOR DIODE

MV1807J1 Description

MV1807J1 SILICON VARACTOR DIODE .
The ASI MV1807J1 is a Diffused Epitaxial Varactor Diode Designed for Multiplier Applications.

MV1807J1 Applications

* PACKAGE STYLE DO-4 MAXIMUM RATINGS I V PDISS TJ TSTG θJC O O 100 mA 80 V 21 W @ TC = 25 C -65 C to +150 C -65 C to +175 C 6.0 C/W O O O O Cathode to case CHARACTERISTICS SYMBOL VB CT RS FOUT POUT FIN PIN IR = 10 µA VR = 6.0 V VR = 6.0 V TC = 25 C O NONE TEST CONDITIONS f = 1.0 MHz f = 50 M

📥 Download Datasheet

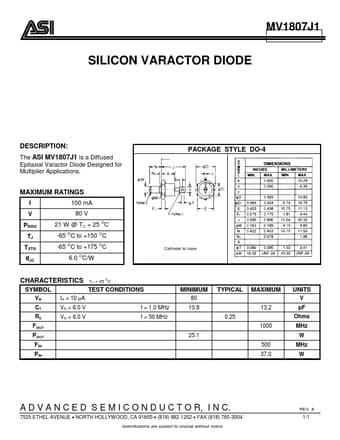

Preview of MV1807J1 PDF

Datasheet Details

Part number
MV1807J1
Manufacturer
Advanced Semiconductor
File Size
28.00 KB
Datasheet
MV1807J1_AdvancedSemiconductor.pdf
Description
SILICON VARACTOR DIODE
