PCL-733 32-ch Isolated Digital Input Card

PCL-733 Description

PCI-1733 PCL-733 .

PCL-733 Features

* Interrupt capacity 32-ch Isolated Digital Input Card with PCI Interface 32-ch Isolated Digital Input Card with ISA Interface
* 32 isolated, digital input channels
* High-voltage isolation (2,500 VDC)
* D-type connectors for isolated input channels
* Reverse voltage protection

PCL-733 Applications

* where highvoltage isolation is required. Speciļ¬cations Isolated Digital Input
* Input Channels
* Input Voltage 32 (16-ch/group) Logic 0: PCI-1733: 2 V max. , PCL-733: 1 V max. Logic 1: 5 V min. PCI-1733: 30 V max. , PCL-733: 24 V max. Interrupt Capable Ch. 4 for PCI-1733, 2 for PCL-733 Isolat

📥 Download Datasheet

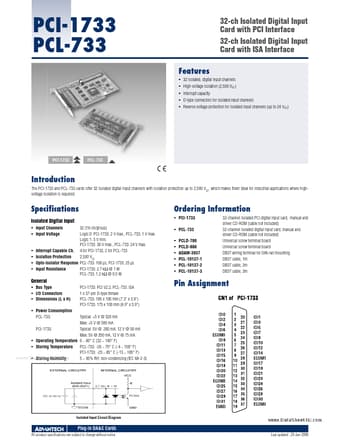

Preview of PCL-733 PDF

Datasheet Details

Part number
PCL-733
Manufacturer
Advantech
File Size
225.52 KB
Datasheet
PCL-733_Advantech.pdf
Description
32-ch Isolated Digital Input Card
