PCL - General Purpose Miniature Relay

Product Overview

Tyco Electronics

Part number	PCL
Manufacturer	Tyco Electronics
File Size	345.65 KB
Description	General Purpose Miniature Relay
Datasheet	PCL Datasheet

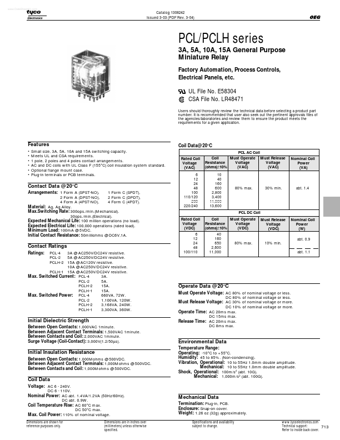

Additional preview pages of the PCL datasheet.

Small size, 3A, 5A, 10A and 15A switching capacity.
Meets UL and CSA requirements.
1 pole, 2 poles and 4 poles contact arrangements.
AC and DC coils with UL Class F (155°C) coil insulation system standard.
Optional flange mount case.
Plug-in terminals or PCB terminals. Coil Data@ 20°C Rated Coil Voltage (VAC) 6 12 24 48 100 110/120 200 220/240 PCL AC Coil Must Operate Must Release Coil Voltage Resistance Voltage (VAC) (ohms)±10% (VAC).
