TPC-120H - 12.1 SVGA TFT LCD XScale PXA270 Touch Panel Computer

TPC-120H Description

TPC-120H 12.1" SVGA TFT LCD XScale PXA270 Touch Panel Computer with CAN-bus .

TPC-120H Features

* Intel® PXA270 processor on board
* 12.1" SVGA TFT LCD
* Super slim and compact design with Al-Mg housing
* Fanless cooling system
* NEMA4/IP65 compliant front panel
* Automatic data flow control RS-485
* Built-in flash memory and Windows CE OS
* CAN-bus 2.0B support

TPC-120H Applications

* Its RISC kernel, Intel PXA, counsumes minimum power without sacrificing performance. With a high quality TFT LCD display, TPC-120H models support two 10/100BASE-T Ethernet ports to offer solid communication ability, and comes bundled with a Windows CE OS to support thin-client solutions. Specifica

📥 Download Datasheet

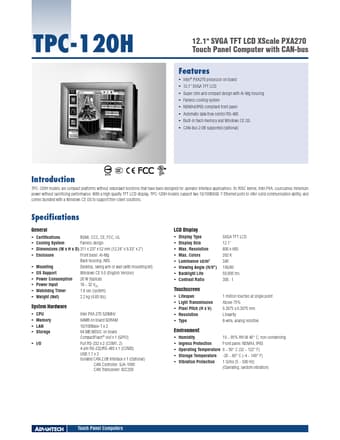

Preview of TPC-120H PDF
datasheet Preview Page 2

Datasheet Details

Part number
TPC-120H
Manufacturer
Advantech
File Size
1.01 MB
Datasheet
TPC-120H_Advantech.pdf
Description
12.1 SVGA TFT LCD XScale PXA270 Touch Panel Computer
