ACT3492 - Remote Terminal BUS Controller or Passive Monitor

Aeroflex Circuit Technology

The ACT3492 by Aeroflex Circuit Technology is a Remote Terminal BUS Controller or Passive Monitor. Below is the official datasheet preview.

📥 Download Datasheet

ACT3492 Remote Terminal BUS Controller or Passive Monitor by Aeroflex Circuit Technology - Datasheet Preview — Official preview page of the **ACT3492** Remote Terminal BUS Controller or Passive Monitor datasheet (Aeroflex Circuit Technology).

Datasheet Details

Part number	ACT3492
Manufacturer	Aeroflex Circuit Technology
File Size	360.43 KB
Description	Remote Terminal BUS Controller or Passive Monitor
Datasheet	ACT3492_AeroflexCircuitTechnology.pdf

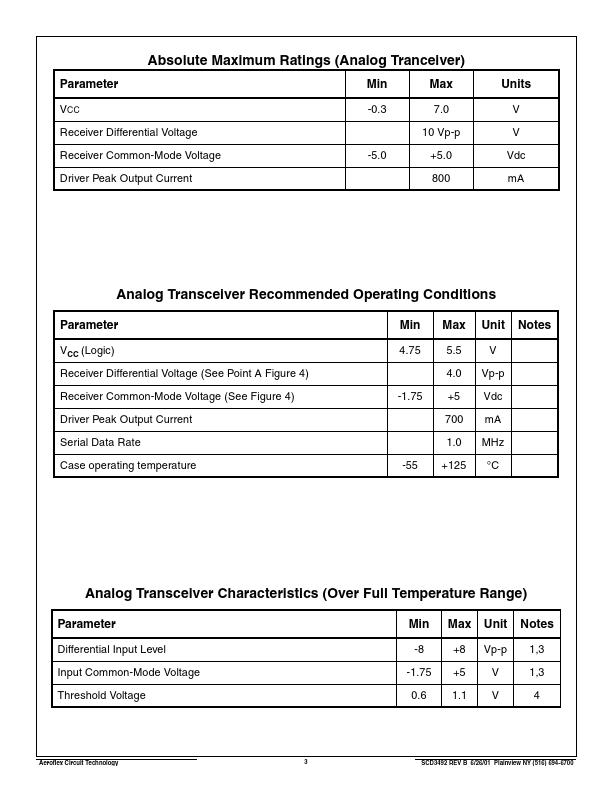

Additional preview pages of the ACT3492 datasheet.

ACT3492 Product details

Description

The ACT3492 Series is a monolithic implementation of the MIL-STD-1553B Bus Controller, Remote Terminal and Passive Monitor functions including dual low power Bus tranceivers.

Features

Dual Low Power Monolithic Bus Tranceivers.
Performs the Complete Dual-Redundant Remote Terminal, Bus Controller Protocol and Passive Monitor Functions of MIL-STD-1553B.
Automated Self-Test Functions.
Allows Setting of the Message Error Bit on Illegal Commands.
Provides programmable control over Terminal Flag and Subsystem Flag Status Bits.
MIL-PRF-38534 Compliant Circuits Available.
250 mw Typical Power Consumption.
Small S.
