ACT4418

Dual Variable Amplitude Transceiver

ACT4418 Features

* ACT4418 Dual Transceivers meets MIL-STD-1553A&B, Macair A3818, A4905, A5232 and A5690 Specs

* ±12 Volt Power Supply Operation

* Voltage source output for higher bus drive power

* Molded Plug-in package

* Monolithic construction using linear ASICs

* V

ACT4418 General Description

The Aeroflex Circuit Technology ACT4418D is a new generation monolithic transceivers which provide full compliance with Macair and MILSTD-1553 data bus requirements while providing variable amplitude control. The ACT4418D performs the frontend analog function of inputting and outputting data through.

ACT4418 Datasheet (75.94 KB)

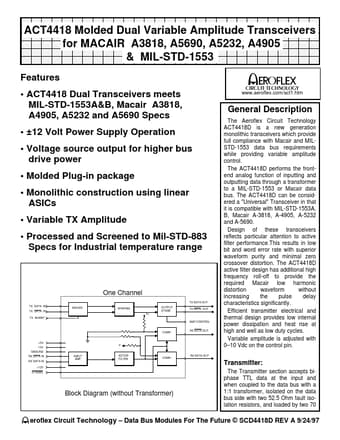

Preview of ACT4418 PDF

Datasheet Details

Part number:

ACT4418

Manufacturer:

Aeroflex Circuit Technology

File Size:

75.94 KB

Description:

Dual variable amplitude transceiver.
