ACT4487

DUAL TRANSCEIVER

ACT4487 Features

* Small size, light weight and low power dissipation dual transceiver

* +5V / ±15V DC power supply operation

* Outstanding MIL-STD-1553 / SAE-AS15531 performance

* Monolithic construction

* Input and output TTL compatible design

* Designed for commerci

ACT4487 General Description

The Aeroflex-Plainview ACT4487 is the next generation monolithic transceiver design which provides full compliance with MIL-STD-1553A/B, MIL-STD-1760 and meets SAE -AS15531 requirements in the smallest package with lower pin count for those designs with less board space. The series performs the fron.

ACT4487 Datasheet (477.73 KB)

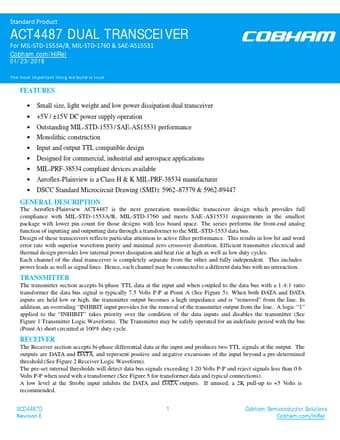

Preview of ACT4487 PDF

Datasheet Details

Part number:

ACT4487

Manufacturer:

Cobham Semiconductor

File Size:

477.73 KB

Description:

Dual transceiver.
Standard Product ACT4487 DUAL TRANSCEIVER For MIL-STD-1553A/B, MIL-STD-1760 & SAE-AS15531 Cobham.com/HiRel 01/23/2018 The most important thing we buil.
