ACT4423

DUAL TRANSCEIVER

ACT4423 Features

* +5 / +12 Volt Power Supply Operation

* Eliminates Negative Power Supply

* Low Power Dissipation

* Small Size & Light Weight

* Dual Transceivers Saves Space & Cost

* Outstanding MIL-STD-1553 performance

* Radiation Hard Dielectric Isolation Mo

ACT4423 General Description

The Aeroflex Circuit Technology ACT4423 is a next generation monolithic transceiver design which provides full compliance to MIL-STD-1553A/B and 1760 requirements in a small package with low power consumption. The ACT4423 series performs the front-end analog function of inputting and outputting data.

ACT4423 Datasheet (94.01 KB)

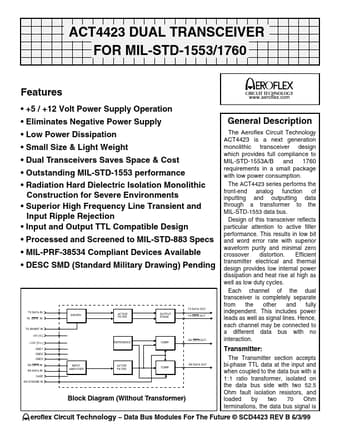

Preview of ACT4423 PDF

Datasheet Details

Part number:

ACT4423

Manufacturer:

Aeroflex Circuit Technology

File Size:

94.01 KB

Description:

Dual transceiver.
