ACT4433

DUAL TRANSCEIVER

ACT4433 Features

* ❑ Small size, light weight and low power dissipation dual transceiver ❑ Smaller Case Outline then ACT4489D ❑ Bipolar supply ±12V, Logic supply +5V ❑ Outstanding MIL-STD-1553 / MIL-STD-1760 / SAE-AS15531 performance ❑ Monolithic construction ❑ Designed for commercial, industrial and aerospace applica

ACT4433 General Description

The Aeroflex-Plainview ACT4433 is a next generation monolithic transceiver design which provides full compliance to MIL-STD-1553A/B and 1760 requirements in a small package with lower pin count then the ACT4489D, for those designs with less board space. The dual channel Model ACT4433 performs the fr.

ACT4433 Datasheet (151.77 KB)

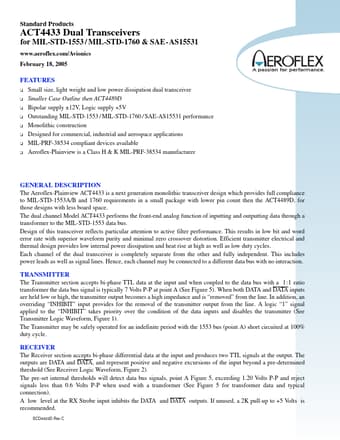

Preview of ACT4433 PDF

Datasheet Details

Part number:

ACT4433

Manufacturer:

Aeroflex Circuit Technology

File Size:

151.77 KB

Description:

Dual transceiver.
