ACT4436

DUAL TRANSCEIVER

ACT4436 Features

* ❑ Small size, light weight and low power dissipation dual transceiver ❑ +5V / ±15V DC power supply operation ❑ Outstanding MIL-STD-1553 / SAE-AS15531 performance ❑ Monolithic construction ❑ Input and output TTL compatible design ❑ Designed for commercial, industrial and aerospace applications ❑ MIL-

ACT4436 General Description

The Aeroflex-Plainview ACT4436 is the next generation monolithic transceiver design which provides full compliance with MIL-STD-1553A/B, MIL-STD-1760 and meets SAE-AS15531 requirements in the smallest package with lower pin count then the ACT4487D, for those designs with less board space. The series.

ACT4436 Datasheet (139.55 KB)

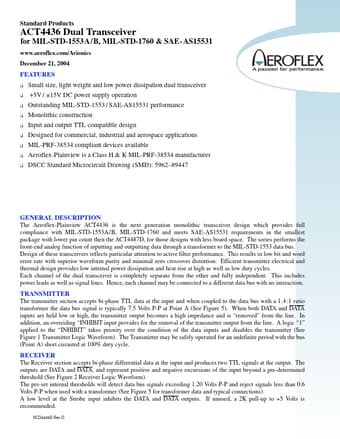

Preview of ACT4436 PDF

Datasheet Details

Part number:

ACT4436

Manufacturer:

Aeroflex Circuit Technology

File Size:

139.55 KB

Description:

Dual transceiver.
