ACT4404N - Single Transceiver

Datasheet Summary

Description

The Aeroflex-Plainview ACT4404N series are a new generation monolithic transceiver which provide full compliance with Macair and MIL-STD-1553 data bus requirements.

Features

  • ❑ ACT4404N & ACT4440N transceivers meets MIL-STD-1553A & B, Macair A3818, A4905, A5232 and A5690 specs ❑ ACT4407N & ACT4467N transceivers meets MIL-STD-1553A & B specs only ❑ Bipolar supply ±15V to ±12V, logic supply +5V ❑ Monolithic construction ❑ ACT4404N is a direct replacement for the CT3232M and the ACT4407N is direct replacement for the CT3231 ❑ Voltage source output for higher bus drive power ❑ Variable receiver threshold capability ❑ Designed for commercial, industrial and aerospace appl.

📥 Download Datasheet

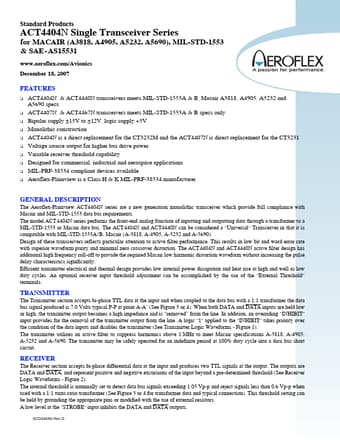

Datasheet preview – ACT4404N

Datasheet Details

Part number ACT4404N
Manufacturer Aeroflex
File Size 155.00 KB
Description Single Transceiver
Datasheet download datasheet ACT4404N Datasheet
Additional preview pages of the ACT4404N datasheet.
