ACTF128K8, ACT-F128K8 High Speed 1 Megabit Monolithic FLASH

ACT *F128K8 High Speed 1 Megabit Monolithic FLASH CIRCUIT TECHNOLOGY www.aeroflex.com .
I/O0-7 Data I/O General Description The ACT. F128K8 is a high speed, 1 megabit CMOS monolithic Flash module designed for full temperature rang.

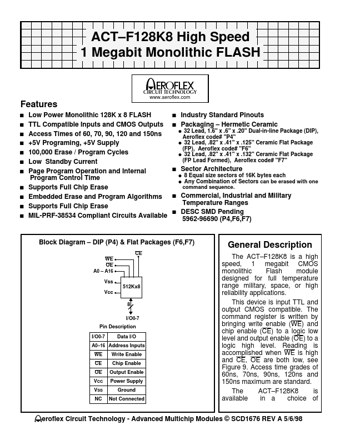

datasheet Preview Page 1 from Datasheet4u.com

ACTF128K8_AeroflexCircuitTechnology.pdf

ACTF128K8 Datasheet Preview — Preview of ACTF128K8 PDF

Datasheet Details

Part number:

ACTF128K8

Manufacturer:

Aeroflex Circuit Technology

File Size:

150.75 KB

Description:

ACT-F128K8 High Speed 1 Megabit Monolithic FLASH

Features

* s s s s s s s s s s s Low Power Monolithic 128K x 8 FLASH TTL Compatible Inputs and CMOS Outputs Access Times of 60, 70, 90, 120 and 150ns +5V Programing, +5V Supply 100,000 Erase / Program Cycles Low Standby Current Page Program Operation and Internal Program Control Time Supports Full Chip Erase

Applications

* This device is input TTL and output CMOS compatible. The command register is written by bringing write enable (WE) and chip enable (CE) to a logic low level and output enable (OE) to a logic high level. Reading is accomplished when WE is high and CE, OE are both low, see Figure 9. Access time grade
