CT2100-400 Datasheet - Aeroflex Circuit Technology

CT2100-400 - MICROPROCESSOR CONTROLLED QUAD SOLID STATE RELAY

The CT2100-400 is a quad solid state relay.

The device has been designed to provide an interface which operates as a simple computer I/O port.

The switches are controlled by a single data word which the processor writes to an internal control latch.

In addition to the basic switch function ON/OFF an

CT2100-400 Features

* 4 Independent 1.0 Amp Switches CIRCUIT TECHNOLOGY

* 600 Volts Isolation between Switches www.aeroflex.com/act1.htm

* Operates from a 5 Volt Logic and 15 Volt Bias

* D.C. Trip Level 1.3 Amps

* Switches are Designed to withstand Electro-Magnetic Pulse (EMP)

CT2100-400_AeroflexCircuitTechnology.pdf

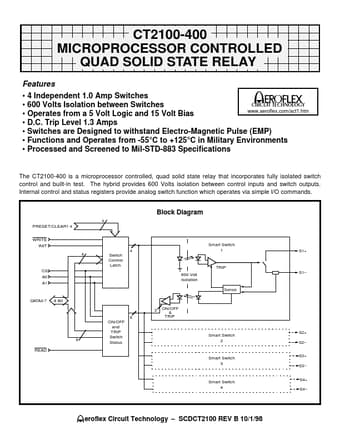

Preview of CT2100-400 PDF
CT2100-400 Datasheet Preview Page 2 CT2100-400 Datasheet Preview Page 3

Datasheet Details

Part number:

CT2100-400

Manufacturer:

Aeroflex Circuit Technology

File Size:

253.68 KB

Description:

Microprocessor controlled quad solid state relay.
