CT216-201 Datasheet - AMRAN

CT216-201 LV Plastic-Cased Current Transformers

Model CT216 LV Plastic-Cased Current Transformers Window 5.25”, 600V, 10kV BIL E205113 231838 UL, cUL Recognized and CSA Certified As per ANSI/IEEE C57.13 OR IEC 60044 OR relevant standard INSULATION LEVEL 600 V, BIL 10kV full wave FREQUENCY 50-400 Hz THERMAL RATING 50:5-4000:5 - 1.33 @ 30 deg. C ambient OUTER ENCAPSULATION Plastic Cased SECONDARY TERMINALS Brass screw # 10-32 with one flat washer and lock washer APPROX. WEIGHT 26 lbs. CUSTOM OPTIONS (CONTACT US.

CT216-201-AMRAN.pdf

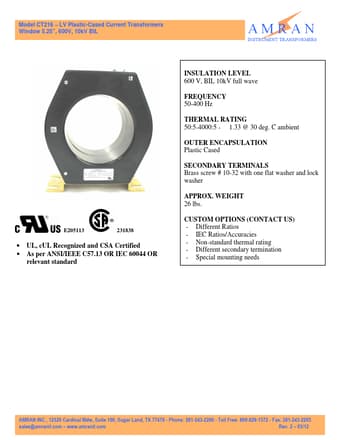

Preview of CT216-201 PDF
CT216-201 Datasheet Preview Page 2 CT216-201 Datasheet Preview Page 3

Datasheet Details

Part number:

CT216-201

Manufacturer:

AMRAN

File Size:

230.00 KB

Description:

Lv plastic-cased current transformers.
