CT20ASL-8 IGBT

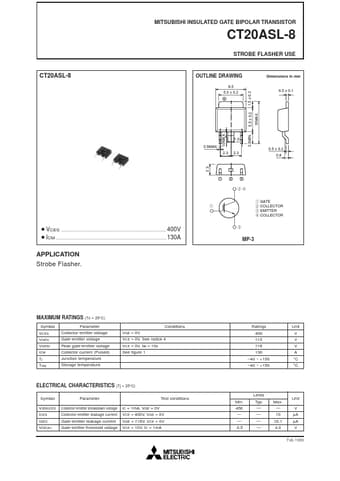

MITSUBISHI INSULATED GATE BIPOLAR TRANSISTOR CT20ASL-8 STROBE FLASHER USE CT20ASL-8 OUTLINE DRAWING 6.5 5.0 ± 0.2 4 Dimensions in mm 5.5 ± 0.2 1.5 ± 0.2 0.5 ± 0.1 1.0MAX. 1.0 0.9MAX. 2.3MIN. 10MAX. 0.5 ± 0.2 2.3 2.3 0.8 2.3 1 2 3 wr q GATE w COLLECTOR e EMITTER r COLLECTOR e q ¡VCES 400V ¡ICM 130A MP-3 APPLICATION Strobe Flasher. MAXIMUM RATINGS Symbol VCES VGES VGEM ICM Tj Tstg (Tc = 25°C) Parameter Collector-emitter voltage Gate-emitter voltage Peak gate-emitter volt.
