UT54ACTS164, UT54ACS164 8-Bit Shift Registers

UT54ACTS164 Description

Standard Products UT54ACS164/UT54ACTS164 8-Bit Shift Registers Datasheet November 2010 www.aeroflex.com/logic .
The UT54ACS164 and the UT54ACTS164 are 8-bit shift registers which feature AND-gated serial inputs and an asynchronous clear.

UT54ACTS164 Features

* ‰ AND-gated (enable/disable) serial inputs ‰ Fully buffered clock and serial inputs ‰ Direct clear ‰ 1.2μ CMOS - Latchup immune ‰ High speed ‰ Low power consumption ‰ Single 5 volt supply ‰ Available QML Q or V processes ‰ Flexible package - 14-pin DIP - 14-lead flatpack ‰ UT54ACS164 - SMD 5962-9655

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UT54ACTS164, UT54ACS164. Please refer to the document for exact specifications by model.

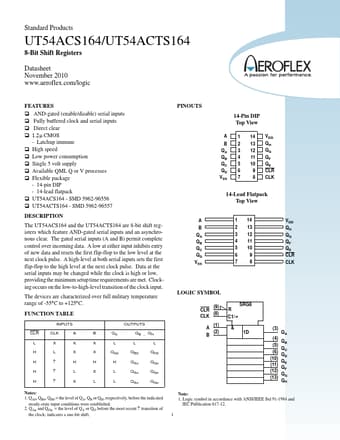

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UT54ACTS164, UT54ACS164
Manufacturer
Aeroflex Circuit Technology
File Size
236.47 KB
Datasheet
UT54ACS164-AeroflexCircuitTechnology.pdf
Description
8-Bit Shift Registers
Note
This datasheet PDF includes multiple part numbers: UT54ACTS164, UT54ACS164.
Please refer to the document for exact specifications by model.
