UT54ACTS169, UT54ACS169, 4-Bit Up-Down Binary Counters

Standard Products UT54ACS169/UT54ACTS169 4-Bit Up-Down Binary Counters Datasheet November 2010 www.aeroflex.com/logic .
The UT54ACS169 and the UT54ACTS169 are synchronous 4bit binary counters that feature an internal carry look-ahead for cascading in high-speed counting.

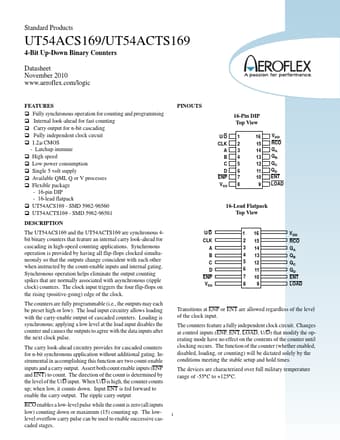

datasheet Preview Page 1 from Datasheet4u.com

UT54ACS169-AeroflexCircuitTechnology.pdf

UT54ACTS169 Datasheet Preview — This datasheet PDF includes multiple part numbers: UT54ACTS169, UT54ACS169. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UT54ACTS169, UT54ACS169

Manufacturer:

Aeroflex Circuit Technology

File Size:

257.85 KB

Description:

4-Bit Up-Down Binary Counters

Note:

This datasheet PDF includes multiple part numbers: UT54ACTS169, UT54ACS169.
Please refer to the document for exact specifications by model.

Features

* Fully synchronous operation for counting and programming Internal look-ahead for fast counting Carry output for n-bit cascading Fully independent clock circuit 1.2μ CMOS - Latchup immune High speed Low power consumption Single 5 volt supply Available QML Q or V processes Flexible

Applications

* Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs change coincident with each other when instructed by the count-enable inputs and internal gating. Synchronous operation helps eliminate the output counting spikes that are normally associated with
