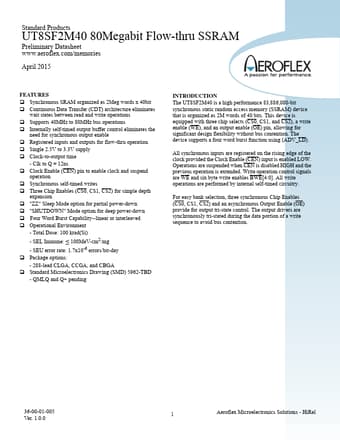

UT8SF2M40 80Megabit Flow-thru SSRAM

Chip Enable 0, Input, Active LOW: Sampled on the rising edge of CLK. Used in conjunction with CS1 and CS2 to select or deselect the device. Chip Enable 1 Input, Active HIGH: Sampled on the rising edge of CLK. Used in conjunction with CS0 and CS2 to select or deselect the device. Chip Enable 2 Input,.

UT8SF2M40 Features

*  Synchronous SRAM organized as 2Meg words x 40bit  Continuous Data Transfer (CDT) architecture eliminates wait states between read and write operations  Supports 40MHz to 80MHz bus operations  Internally self-timed output buffer control eliminates the need for synchronous output enable  Registe
