VRG8608 - Dual Adjustable Positive Voltage Regulators

This page provides the datasheet information for the VRG8608, a member of the VRG8607 Dual Adjustable Positive Voltage Regulators family.

Description

The Aeroflex Plainview VRG8607/08 consists of two positive (RH117) voltage regulators each capable of supplying in excess of 1.5Amps over the output voltage range as defined under recommended operating conditions.

Features

  • ❑ Manufactured using Linear Technology Corporation ® Space Qualified RH117 die ❑ Radiation performance - Total dose: 100 krads(Si), Dose rate = 50 - 300 rads(Si)/s - ELDRS: 50 krads(Si), Dose rate < 10 mrads(Si)/s ❑ Thermal shutdown ❑ Output voltage adjustable: 1.25V to 37V ❑ Load regulation: 1.9% max ❑ Line regulation: 0.06%/V max ❑ Ripple rejection: >66dB ❑ Packaging.
  • Hermetic metal - Thru-hole or Surface mount - 6 Leads, .655"L x .415"W x .200"Ht - Power package ❑ 3-Terminal -.

📥 Download Datasheet

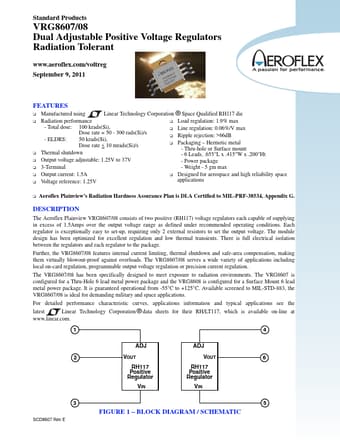

Datasheet preview – VRG8608

Datasheet Details

Part number VRG8608
Manufacturer Aeroflex Circuit Technology
File Size 110.14 KB
Description Dual Adjustable Positive Voltage Regulators
Datasheet download datasheet VRG8608 Datasheet
Additional preview pages of the VRG8608 datasheet.

📁 Similar Datasheet

  • VRG8608 - Voltage Regulator (Cobham Semiconductor)
  • VRG8601 - Voltage Regulator (Cobham Semiconductor)
  • VRG8602 - Voltage Regulator (Cobham Semiconductor)
  • VRG8607 - Voltage Regulator (Cobham Semiconductor)
  • VRG8609 - Voltage Regulator (Cobham Semiconductor)
  • VRG8610 - Voltage Regulator (Cobham Semiconductor)
  • VRG8653 - Voltage Regulator (Cobham Semiconductor)
  • VRG8654 - Voltage Regulator (Cobham Semiconductor)
  • VRG8657 - Voltage Regulator (Cobham Semiconductor)
  • VRG8658 - Voltage Regulator (Cobham Semiconductor)
Other Datasheets by Aeroflex Circuit Technology
  • VRG8601 - Dual Adjustable Positive/Negative Voltage Regulators
  • VRG8602 - Dual Adjustable Positive/Negative Voltage Regulators
  • VRG8607 - Dual Adjustable Positive Voltage Regulators
  • VRG8609 - Dual Adjustable Negative Voltage Regulators
  • VRG8610 - Dual Adjustable Negative Voltage Regulators
  • VRG8653 - Dual Voltage Regulator
  • VRG8654 - Dual Voltage Regulator
  • VRG8657 - Dual Voltage Regulator

Full PDF Text Transcription

Click to expand full text
Standard Products VRG8607/08 Dual Adjustable Positive Voltage Regulators Radiation Tolerant www.aeroflex.com/voltreg September 9, 2011 FEATURES ❑ Manufactured using Linear Technology Corporation ® Space Qualified RH117 die ❑ Radiation performance - Total dose: 100 krads(Si), Dose rate = 50 - 300 rads(Si)/s - ELDRS: 50 krads(Si), Dose rate < 10 mrads(Si)/s ❑ Thermal shutdown ❑ Output voltage adjustable: 1.25V to 37V ❑ Load regulation: 1.9% max ❑ Line regulation: 0.06%/V max ❑ Ripple rejection: >66dB ❑ Packaging – Hermetic metal - Thru-hole or Surface mount - 6 Leads, .655"L x .415"W x .200"Ht - Power package ❑ 3-Terminal - Weight - 5 gm max ❑ Output current: 1.5A ❑ Voltage reference: 1.
