LM200802-M-A-300 Datasheet - Aeroflex

Surface Mount Pin Diode Limiter

LM200802-M-A-300 Features

* Broadband Performance: 20 MHz

* 8 GHz

* Surface Mount Limiter in Compact Outline: 8 mm L x 5 mm W x 2.5 mm H

* Incorporates NIP and PIN Limiter Diodes

* Higher Average Power Handling than Plastic-Packaged Limiter: 44 dBm Average Power

* Low Insertion

LM200802-M-A-300 General Description

The LM200802-M-A-300 Surface Mount PIN Diode Limiter Module is a surface mount, passive two-stage power limiter which operates from 20 MHz to 8 GHz. It is manufactured using Aeroflex Metelics proven hybrid manufacturing process incorporating silicon NIP and PIN diodes integrated onto a ceramic subst.

LM200802-M-A-300 Datasheet (396.35 KB)

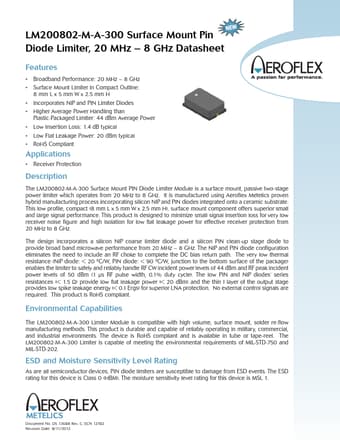

Preview of LM200802-M-A-300 PDF

Datasheet Details

Part number:

LM200802-M-A-300

Manufacturer:

Aeroflex

File Size:

396.35 KB

Description:

Surface mount pin diode limiter.
