LM202802-L-C-300

Surface Mount PIN Diode Limiter

LM202802-L-C-300 Features

* Surface Mount Limiter in Compact Outline: 8mm L x 5mm W x 2.5 mm H

* Incorporates PIN Limiter Diodes, D.C. Blocks & D.C. Return

* Higher Peak Power Handling than Plastic ( 100 W Peak Power )

* Higher Average Power Handling than Plastic ( 4 W C.W Power )

* Lo

LM202802-L-C-300 General Description

The LM202802-L-C-300 Surface Mount Silicon PIN Diode Limiter is manufactured using Aeroflex / Metelics proven hybrid manufacturing process incorporating PIN Diodes and passive devices integrated within a ceramic substrate. This low profile, compact, surface mount component, (8mm L x 5mm W x 2.5 mm H.

LM202802-L-C-300 Datasheet (245.37 KB)

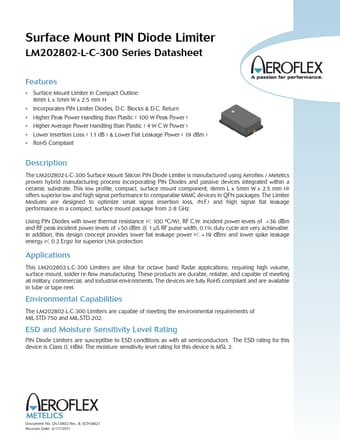

Preview of LM202802-L-C-300 PDF

Datasheet Details

Part number:

LM202802-L-C-300

Manufacturer:

Aeroflex

File Size:

245.37 KB

Description:

Surface mount pin diode limiter.
