LM202802-Q-B-301

PIN Diode Limiter

LM202802-Q-B-301 Features

* Surface Mount SP2T Switch in Compact Outline: 8 L x 5 W x 2.5 H mm Package

* Incorporates PIN Limiter & Schottky Diodes

* DC Blocks & DC Return

* Higher Average Power Handling than Plastic Packaged MMIC Switches: 100 W CW

* Low Insertion Loss: 1.1 dB

* Low Flat Leakage Powe

LM202802-Q-B-301 General Description

The LM202802‐Q‐x‐301 Surface Mount Silicon PIN Diode Limiters are manufactured using a proven hybrid manufacturing process incorporating PIN diodes and passive devices integrated within a ceramic substrate. This low profile, compact, surface mount component, offers superior low and high signal perfo.

LM202802-Q-B-301 Datasheet (1.05 MB)

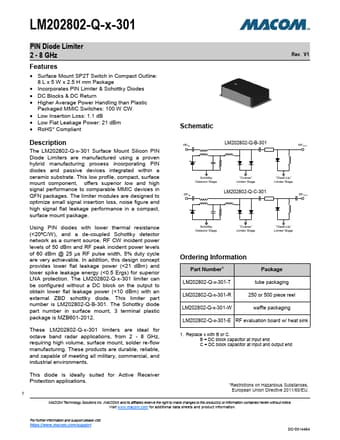

Preview of LM202802-Q-B-301 PDF

Datasheet Details

Part number:

LM202802-Q-B-301

Manufacturer:

MA-COM

File Size:

1.05 MB

Description:

Pin diode limiter.
