LM202802-Q-C-301 PIN Diode Limiter

The LM202802‐Q‐x‐301 Surface Mount Silicon PIN Diode Limiters are manufactured using a proven hybrid manufacturing process incorporating PIN diodes and passive devices integrated within a ceramic substrate. This low profile, compact, surface mount component, offers superior low and high signal perfo.

LM202802-Q-C-301 Features

* Surface Mount SP2T Switch in Compact Outline: 8 L x 5 W x 2.5 H mm Package

* Incorporates PIN Limiter & Schottky Diodes

* DC Blocks & DC Return

* Higher Average Power Handling than Plastic Packaged MMIC Switches: 100 W CW

* Low Insertion Loss: 1.1 dB

* Low Flat Leakage Powe

LM202802-Q-B-301-MA-COM.pdf

LM202802-Q-C-301 Datasheet Preview — This datasheet PDF includes multiple part numbers: LM202802-Q-C-301, LM202802-Q-B-301-MA. Please refer to the document for exact specifications by model.

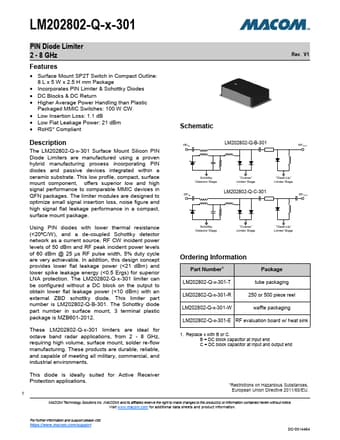

LM202802-Q-C-301 Datasheet Preview Page 2

LM202802-Q-C-301 Datasheet Preview Page 3

Datasheet Details

Part number:

LM202802-Q-C-301, LM202802-Q-B-301-MA

Manufacturer:

MA-COM

File Size:

1.05 MB

Description:

Pin diode limiter.

Note:

This datasheet PDF includes multiple part numbers: LM202802-Q-C-301, LM202802-Q-B-301-MA.
Please refer to the document for exact specifications by model.
