M3406 - 800mA Synchronous Step-Down Converter

M3406 Description

AEROSEMI M3406 CASC 800mA,2V-6V Input,1.5MHz Synchronous Step-Down Converter .
The M3406 is a constant frequency, current mode step-down converter.

M3406 Features

* High Efficiency: Up to 96%
* 1.5MHz Constant Frequency Operation
* 800mA Output Current
* No Schottky Diode Required
* 2V to 6V Input Voltage Range
* Output Voltage as Low as 0.6V
* PFM Mode for High Efficiency in Light Load
* 100% Duty Cycle in Dropout Operation

M3406 Applications

* Cellular and Smart Phones
* Wireless and DSL Modems
* PDAs
* Portable Instruments
* Digital Still and Video Cameras
* DTV TYPICAL APPLICATION VIN CIN 10μF VIN SW M3406 EN FB GND L 2.2μH R1 200k 1% R2 100k 1% C1 22pF opt. VOUT COUT 10μF Figure 1. Basic Applicatio

📥 Download Datasheet

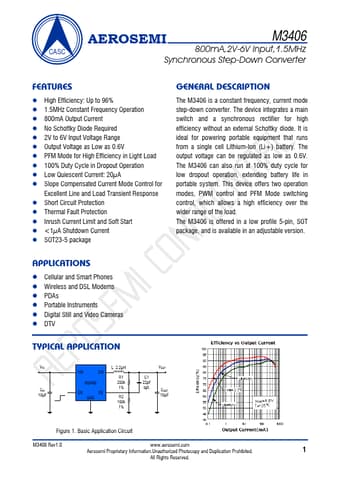

M3406 Datasheet Preview — Preview of M3406 PDF

Datasheet Details

Part number: M3406
Manufacturer: Aerosemi
File Size: 350.57 KB
Datasheet: M3406-Aerosemi.pdf
Description: 800mA Synchronous Step-Down Converter
