MT6511 High Precision CC/CV Primary-Side Conteoller

MT6511 Description

AEROSEMI MT6511 High Precision CC/CV Primary-Side Conteoller .
MT6511 is a high performance offline PWM Power switch for low power AC/DC charger and adapter applications.

MT6511 Features

* 5% Constant Voltage Regulation, 5% Constant Current Regulation at Universal AC input
* Primary-side Sensing and Regulation Without TL431 and Opto-coupler
* Programmable CV and CC Regulation
* Adjustable Constant Current and Output Power Setting
* Built-in Secondary Constant Cur

MT6511 Applications

* It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrated as shown in the figure below. In CC control, the current and output power setting can be adjusted externall

📥 Download Datasheet

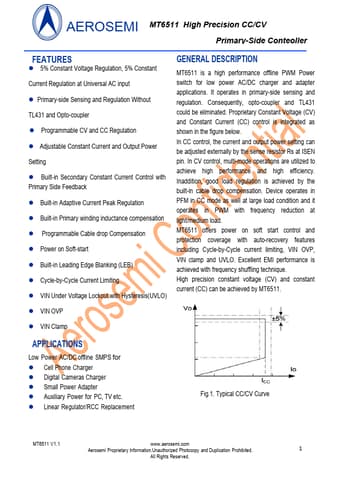

Preview of MT6511 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT6511
Manufacturer
Aerosemi
File Size
939.57 KB
Datasheet
MT6511-Aerosemi.pdf
Description
High Precision CC/CV Primary-Side Conteoller
