MT6501 Datasheet - MagnTek

Magnetic Angle Position Sensor

MT6501 Features

* ￭ Based on advanced AMR Sensing Technology with 0°~360° Full Range Angle Sensing ￭ Contactless Angle Measurement ￭ Programmable Measurement Range ￭ Programmable Linear Transfer Characteristic ￭ Selectable Analog (Ratio metric), PWM (Pulse Width Modulation) or Switch Output (SWO) ￭ 12bit DAC/PWM Reso

MT6501 General Description

The MagnTek rotary position sensor MT6501 is an IC based on advanced AMR magnetic sensing technology. The sensor contains two Wheatstone bridges formed by a magnet field sensing element array. A rotating magnetic field in the x-y sensor plane delivers two sinusoidal output signals indicating the ang.

MT6501 Datasheet (1.03 MB)

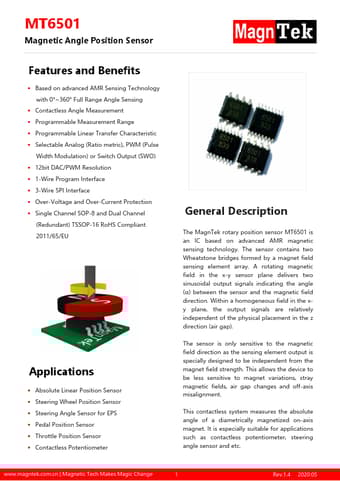

MT6501 Datasheet Preview — Preview of MT6501 PDF

Datasheet Details

Part number:

MT6501

Manufacturer:

MagnTek

File Size:

1.03 MB

Description:

Magnetic angle position sensor.
