AA4838

AUDIO POWER AMPLIFIER

AA4838 Features

* an externally controlled, low-power consumption shutdown mode, and both a power amplifier and headphone mute for maximum system flexibility and performance.

* FEATURES

* DC volume control interface.

* System beep detects.

* Stereo switchable bridged/single-ended power amp

AA4838 General Description

AA4838 AUDIO POWER AMPLIFIER The AA4838 is a monolithic integrated circuit that provides DC volume control, and stereo bridged audio power amplifiers capable of producing 2W into 4Ωwith less than 1.0% THD or 2.2W into 3 Ω with less than 1.0% THD. The audio integrated circuits were designed specif.

AA4838 Datasheet (1.01 MB)

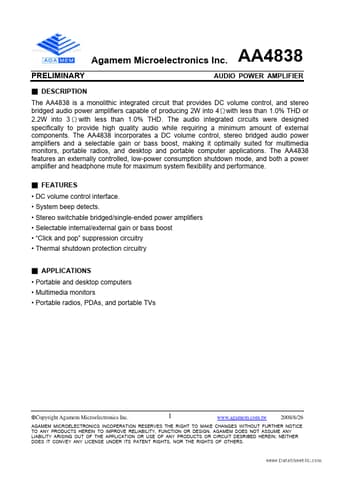

Preview of AA4838 PDF

Datasheet Details

Part number:

AA4838

Manufacturer:

Agamem Microelectronic

File Size:

1.01 MB

Description:

Audio power amplifier.
