SERVO MOTOR CONTROLLER

AA51881 Features

* Built-in voltage regulator.

* Larger driving capability.

* Internal output NPN power transistor.

* Adjustable dead band range control.

* Incorporates a protection circuit for "H-Bridge" driving configuration.

* Small outline package.

* APPLICATIO

AA51881 General Description

AA51881 SERVO MOTOR CONTROLLER The AA51881 is a BJT integrated circuit to be applied on servo motor control applications. The built-in voltage regulator provides the AA51881 with extremely stable output voltage. It also incorporates a linear one-shot and pulse-width demodulator for improved posit.

AA51881 Datasheet (330.85 KB)

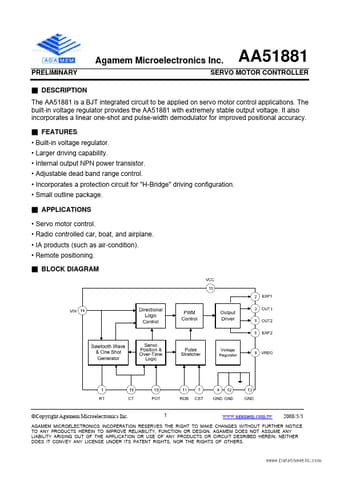

AA51881 Datasheet Preview — Preview of AA51881 PDF

Datasheet Details

Part number:

AA51881

Manufacturer:

Agamem Microelectronic

File Size:

330.85 KB

Description:

Servo motor controller.
