Datasheet Details
- Part number
- AA51883
- Manufacturer
- Agamem Microelectronic
- File Size
- 144.55 KB
- Datasheet
- AA51883_AgamemMicroelectronic.pdf
- Description
- SERVO MOTOR CONTROLLER
AA51883 Description

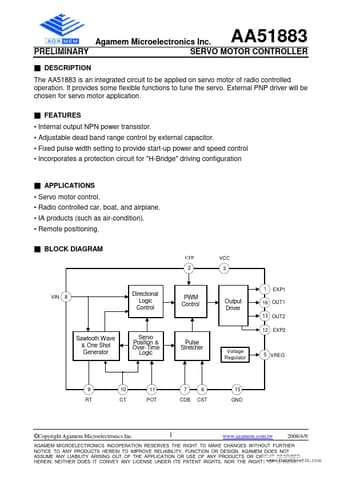

Agamem Microelectronics Inc.www.DataSheet4U.com PRELIMINARY SERVO MOTOR CONTROLLER * .
The AA51883 is an integrated circuit to be applied on servo motor of radio controlled operation.
AA51883 Features
* Internal output NPN power transistor.
* Adjustable dead band range control by external capacitor.
* Fixed pulse width setting to provide start-up power and speed control
* Incorporates a protection circuit for "H-Bridge" driving configuration
AA51883
* APPLICA
AA51883 Applications
* Servo motor control.
* Radio controlled car, boat, and airplane.
* IA products (such as air-condition).
* Remote positioning.
* BLOCK DIAGRAM
CFP 2 VCC 3
VIN
8
Directional Logic Control
1
EXP1
PWM Control
Output Driver
16 OUT1 13 OUT2 12 EXP2
Sawtooth W
